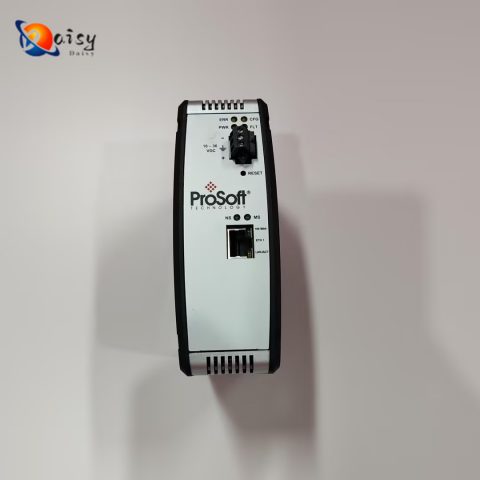

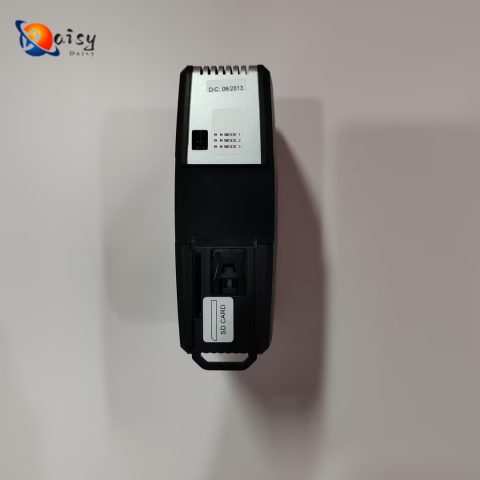

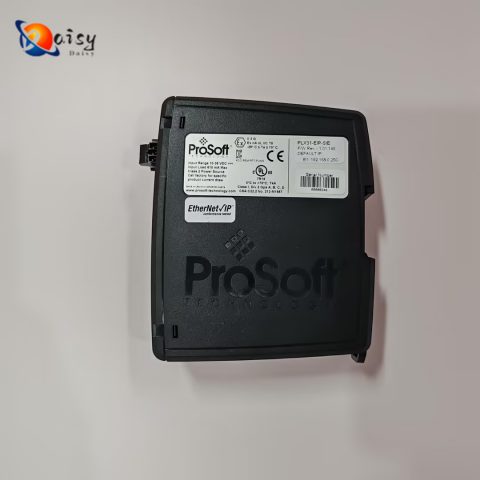

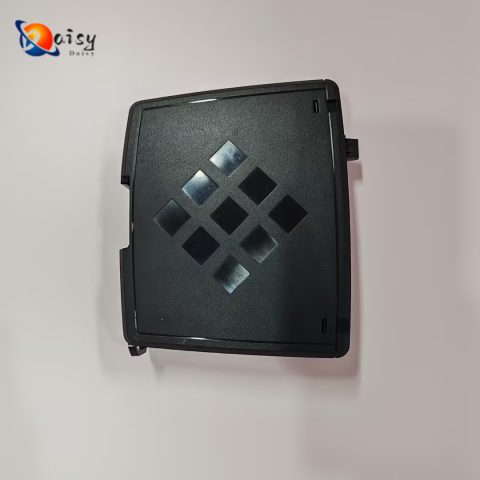

The parameters of PROSOFT PLX32-EIP-SIE are as follows:
Electrical Parameters
Power Supply: The nominal value is 24VDC, and the allowable range is 10 to 36VDC, with positive, negative, and GND terminals.
Current Load: It is 300mA at the nominal 24VDC, and the maximum is 610mA at 10 to 36VDC.
Power Supply: The nominal value is 24VDC, and the allowable range is 10 to 36VDC, with positive, negative, and GND terminals.
Current Load: It is 300mA at the nominal 24VDC, and the maximum is 610mA at 10 to 36VDC.
Environmental Parameters
Operating Temperature: -25°C to 70°C (-13°F to 158°F).
Storage Temperature: -40°C to 80°C (-40°F to 176°F).
Relative Humidity: 5% to 95%, without condensation.
Operating Temperature: -25°C to 70°C (-13°F to 158°F).
Storage Temperature: -40°C to 80°C (-40°F to 176°F).
Relative Humidity: 5% to 95%, without condensation.
Size Parameters: 5.38 × 1.99 × 4.38 inches, that is, 13.67 × 5.05 × 11.13 centimeters.
Ethernet/IP Specification Parameters
Class 3 Server Connections: It supports a certain number of connections.
Supported PLC Types: PLC2, PLC5, SLC, CLX, CMPLX, MICROLX.
Supported Message Types: PCCC and CIP.
Class 3 Client Connections: It supports corresponding client connections.
Number of Class 1 I/O Connections: It has a certain number of I/O connections.
I/O Connection Size: 248/248.
Maximum RPI Time: 5 milliseconds per connection.
Supported CIP Services: 0x4C – CIP Data Table Read, 0x4D – CIP Data Table Write.
Instruction Table: Each client supports 100 commands, and each command can be configured with command type, IP address, register addressing, and word/bit count.
Command Set: PLC-2/PLC-3/PLC5 Basic Command Set, PLC5 Binary Command Set, PLC5 ASCII Command Set, SLC500 Instruction Set.
Class 3 Server Connections: It supports a certain number of connections.
Supported PLC Types: PLC2, PLC5, SLC, CLX, CMPLX, MICROLX.
Supported Message Types: PCCC and CIP.
Class 3 Client Connections: It supports corresponding client connections.
Number of Class 1 I/O Connections: It has a certain number of I/O connections.
I/O Connection Size: 248/248.
Maximum RPI Time: 5 milliseconds per connection.
Supported CIP Services: 0x4C – CIP Data Table Read, 0x4D – CIP Data Table Write.
Instruction Table: Each client supports 100 commands, and each command can be configured with command type, IP address, register addressing, and word/bit count.
Command Set: PLC-2/PLC-3/PLC5 Basic Command Set, PLC5 Binary Command Set, PLC5 ASCII Command Set, SLC500 Instruction Set.
