EPRO PR6423/10R-010 CON021 eddy-current transducer

The EPRO PR6423/10R-010 CON021 Eddy current sensor is a high performance industrial measurement device. The following are the details and features of this sensor:

Basic information
Brand: EPRO
Model: PR6423/10R-010 CON021
Type: Eddy current sensor

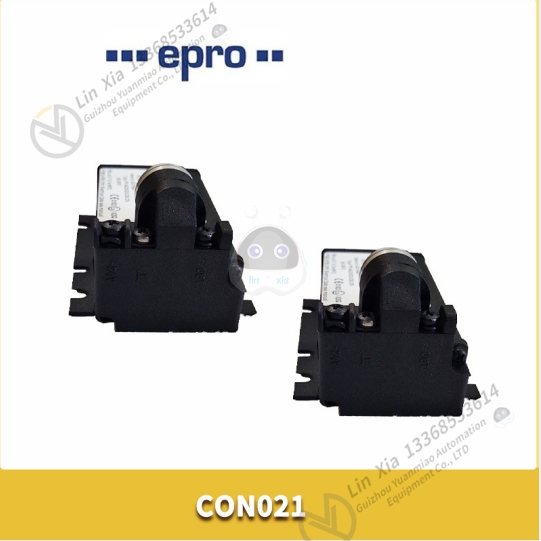

Preprocessor type: CON021
Origin: Germany
Technical characteristics
How it works:
Working on the basis of the eddy current effect, when a metal conductor is placed in a changing magnetic field, it will form self-coalescing eddy current lines within the metal.
Eddy current sensor according to the intensity of the reverse electromagnetic field to judge the distance between the measured body, to achieve non-contact measurement.
Measuring capability:
Suitable for measuring shaft vibration and shaft displacement and other physical quantities, widely used in various turbomachinery.
It is suitable for non-contact measurement of static and dynamic displacement, such as axial and radial displacement, shaft eccentricity, shaft vibration, etc.
Parameter information:
Applicable temperature: -35℃ to +380℃
Cable selection: Armored or unarmored cables can be selected, and 1m cables can be selected with or without connectors
Sensor thread form: available in metric (M10*1) and imperial (3/8 “-24UNF) sizes
Preprocessor type: Optional explosion-proof class model CON011 or standard preprocessor CON021
Features:
It has the advantages of small size, high reliability and non-contact measurement.
Eddy current sensor requires that the measured body must be a conductor.
Application field
Industrial field: Widely used in chemical, energy, electronics, electrical, comprehensive and other industries.
Specific use: Especially suitable for machine tool industry and automobile manufacturing and other industries, is recognized at home and abroad with a promising high-tech industry.
Sum up
The EPRO PR6423/10R-010 CON021 eddy current sensor offers significant advantages in the field of industrial monitoring due to its high accuracy, high reliability and wide applicability. Through its non-contact measurement technology, it can accurately and reliably measure various physical quantities, providing strong support for the operation and maintenance of industrial equipment.
