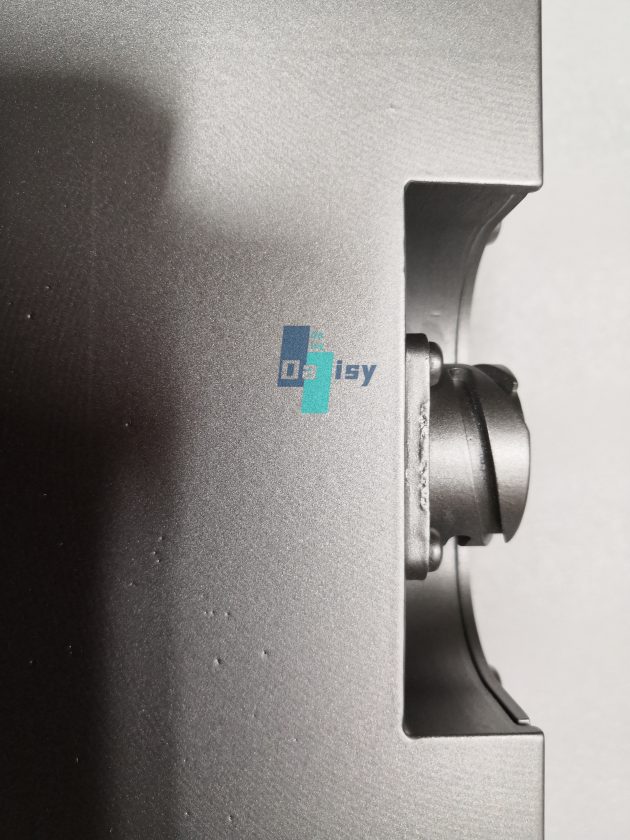

ABB PFTL201D 100KN tensiometer horizontal load cell available from stock

In stock

PFTL201D 100KN is a pillow block tensiometer horizontal load cell produced by ABB company, mainly used to measure the horizontal tension, its force measurement range of 50-100KN. The following is its specific introduction:
Working principle
Based on ABB’s unique Pressductor magneto-effect technology, the sensor has four perpendicular holes inside, through which two perpendicular coils are wound together, one of which is applied alternating current as the excitation coil and the other as the measurement coil. When the sensor is subjected to load, the magnetic characteristics of the steel will change, resulting in a change in the flux symmetry of the magnetic field, and then the measurement coil generates an induced voltage proportional to the load, so as to achieve the measurement of force.
Product characteristics
High precision measurement: Tension can be accurately measured, providing a reliable input for tension control in industrial production, and meeting the strict requirements of tension control in various industrial applications.
High overload tolerance: with strong overload tolerance, can prevent damage to the sensor due to accidental excessive tension, suitable for some industrial occasions where there may be large tension fluctuations, extend the service life of the sensor.
Harsh environment: The stainless steel structure can adapt to harsh industrial environments such as pickling, annealing, galvanized production lines, and maintain stable performance under vibration, overload, extreme temperature and other conditions to ensure accurate and reliable tension measurement.
A variety of communication interfaces: equipped with RS232, RS422/485 half-duplex, RS422/485 full duplex and other communication ports, and each port is isolated from the system, can be flexible with other equipment for data transmission and communication, easy to integrate into different industrial automation control systems.
Wide baud rate range: The baud rate can be selected from 300,1200,2400,4800,9600,19200,38400,57600,115200, etc. The baud rate can be set according to specific communication requirements and device compatibility, improving system flexibility and scalability

Tags: ABB PFTL201D, ABB PFTL201D 100KN

Here are some common parameters of ABB PFTL201D-100KN:
Measuring range
Force value: 100KN.
Electrical parameter
Operating voltage: Usually 24V.
Output frequency: 36.
Communication interface parameter
Port type: RS232, RS422/485 half duplex, RS422/485 full duplex.
Isolation: Each port is isolated from the system, the other port is isolated, and these ports must be externally grounded.
Baud rate: 300, 1200, 2400, 480, 9600, 19200, 38400, 57600, 115200.
Accuracy and resolution
The high-precision measurement ability can accurately measure the tension and meet the strict requirements of tension control in industrial production, but the specific accuracy value has not been found clear official data.
Overload protection
It has a certain overload tolerance, which can prevent the sensor from being damaged due to accidental excessive tension, but the detailed data such as the specific overload multiple is not clear.
Environmental adaptability
It can adapt to harsh industrial environments, such as high temperature, dusty and other environmental conditions common in metal processing and other industries, but it can still maintain stable performance, but the specific temperature range and humidity range are adapted to
